Examine Flow Artifacts

After you have defined Flow Artifacts, you can inspect artifacts produced by executions and discover bookmarked artifacts within a project.

Inspect Flow Artifacts produced by executions

Flow Artifacts are surfaced in a dedicated section in the run view, where they can be easily discovered, inspected and downloaded.

Navigate to Flows > Flow name > Run name > Artifacts in order to inspect the artifacts produced by that particular run.

Inspect artifacts produced by a run

Bookmark artifacts

As many flows are executed, specific flow executions may generate outputs that are especially noteworthy to the project. These Flow Artifacts can be bookmarked by clicking on the Bookmark artifact icon on the right panel:

Bookmark an artifact with the icon

Flow Artifacts can also be bookmarked in bulk by selecting multiple artifacts on the left panel, and clicking on the Bookmark button above:

Bookmark artifacts in bulk

Access artifacts

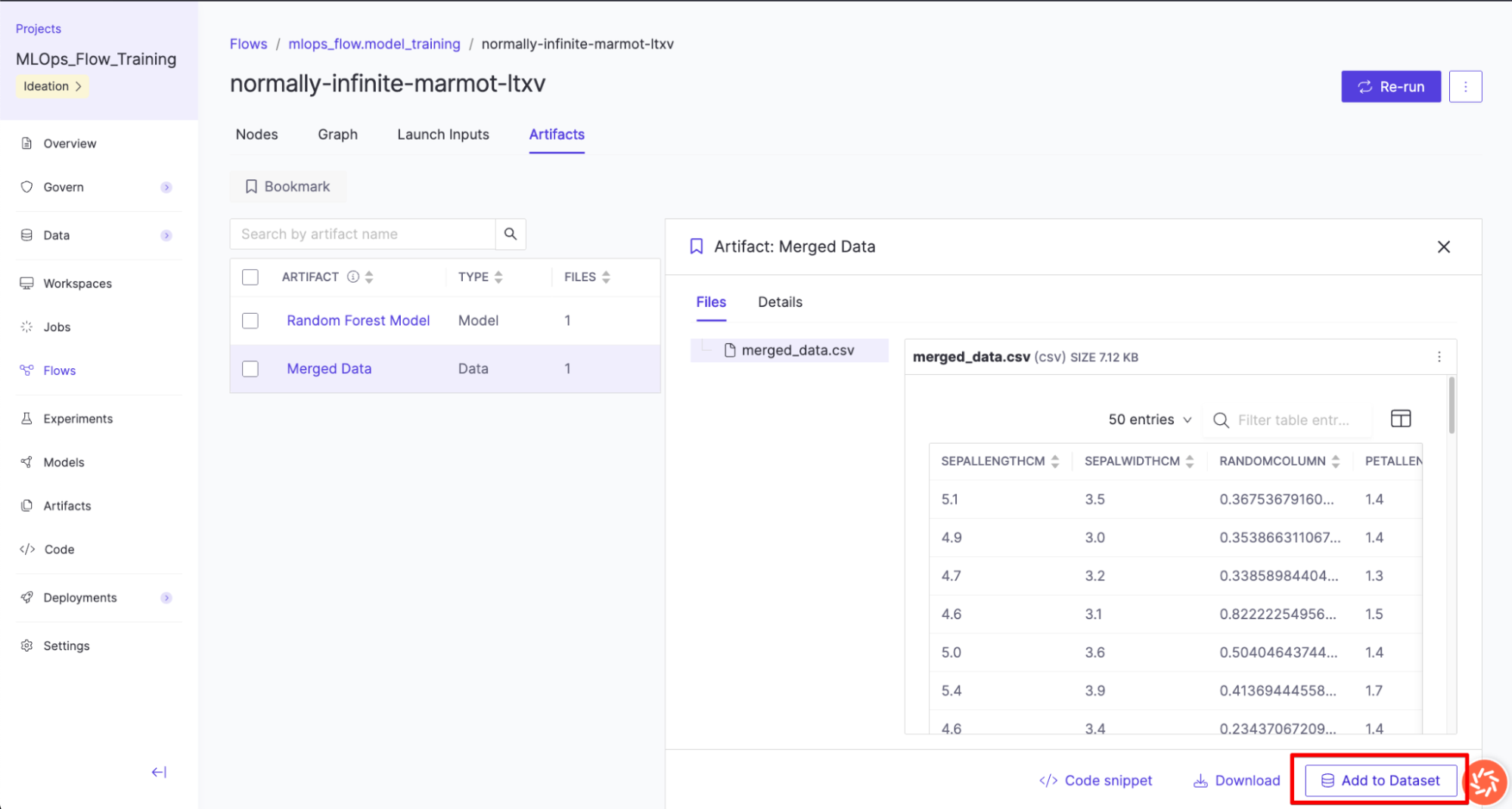

Artifacts that have smaller file sizes may be viewed directly within Domino. The right panel provides two additional means of accessing artifacts, either by downloading them or by accessing them via code.

  • The Download button will download all the files that are part of the selected artifact.

    In this example, all five files (model.pkl, python_env.yaml, requirements.txt, conda.yaml, and MLmodel) are downloaded at once:

    Download files of a selected artifact
  • The Code snippet button generates Python code to directly download stored artifacts to a local workspace. Copy the code using the Copy button and run it inside a workspace:

    Access artifacts through code snippets
  • The default syntax in the code snippet will copy all files within the Flow Artifact to the temporary /workflow/inputs/ directory within your workspace.

    To persist your Flow Artifacts outside of Flows so they are consumable for downstream processes, such as web apps or a batch job, change the local_dir parameter in the code snippet to write your files to a Domino Dataset or the DFS Artifacts file system.

Discover bookmarked Flow Artifacts

Artifacts that have already been bookmarked are displayed at the top level view for Flows to allow for easier discoverability and reuse.

  • Navigate to Flows > Bookmarked Artifacts, and view all the artifacts that were bookmarked on the current project, across flows and runs. This view includes the artifact name, type, and version, as well as additional metadata.

    View bookmarked artifacts
  • Clicking on the Source column will navigate to the run that created the artifact, while clicking on the Artifact column will display a view of the artifact that includes all of its files.

    Display files of an artifact
  • This paginated view allows filtering files by name, as well as downloading one or more selected files at once. Clicking on a file name will display a larger file preview, alongside an option to download the file.

    Display a larger file preview
