Set up Domino on AKS

Domino can run on a Kubernetes cluster provided by the Azure Kubernetes Service.

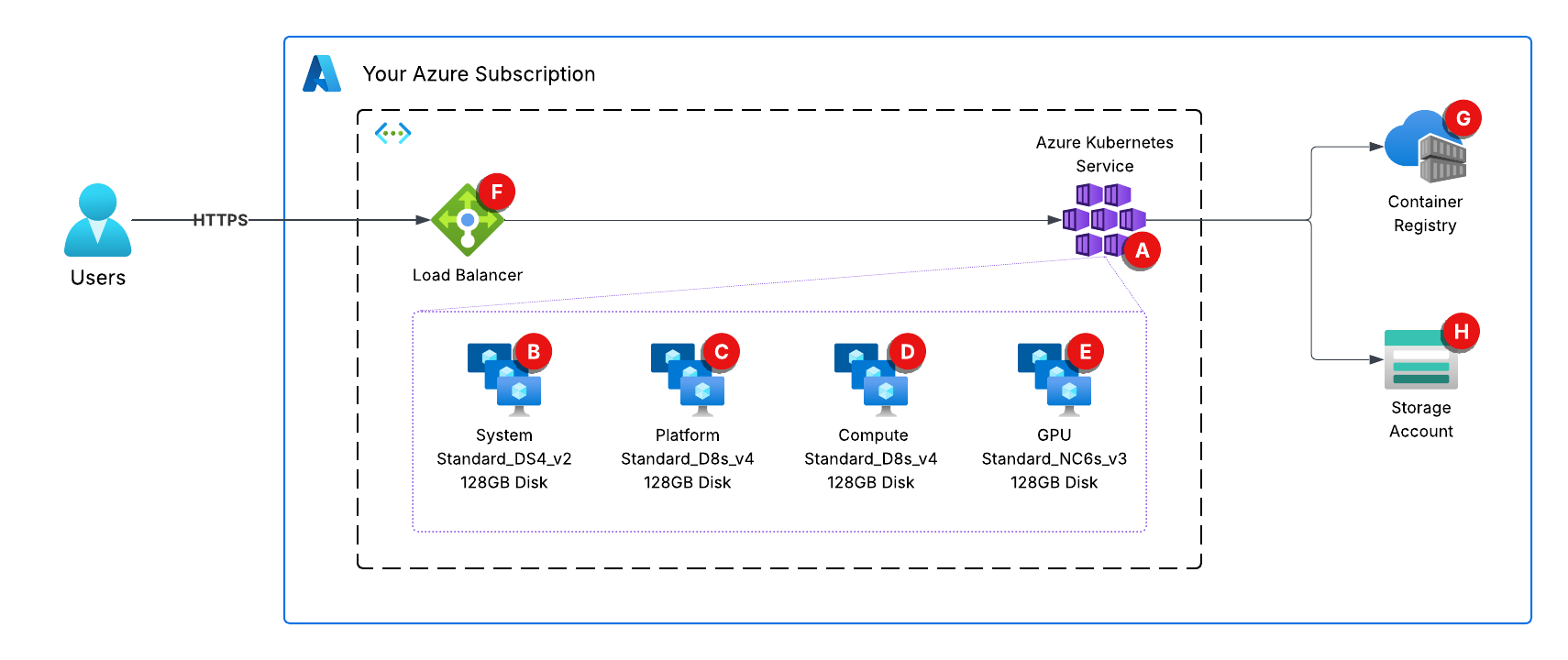

A map of the Azure architecture you’ll need to set up a Domino deployment

When running on AKS, the Domino architecture uses Azure resources to fulfill the Domino cluster requirements as follows:

For a complete Terraform module for Domino-compatible AKS provisioning, see terraform-azure-aks on GitHub.
The AKS control plane, with managed Kubernetes masters, handles Kubernetes control.
The AKS cluster’s default node pool is configured to host the Domino platform.
Additional AKS node pools provide compute nodes for user workloads.
When Domino is deployed in AKS, it is compatible with the containerd runtime, which is the AKS default runtime for Kubernetes 1.19 and above.
When using the containerd runtime, the Azure Container Registry stores Domino images.
An Azure storage account stores Domino blob data and datasets
The kubernetes.io/azure-disk provisioner creates persistent volumes for Domino executions.
The Advanced Azure CNI is used for cluster networking, and Calico enforces network policy.
An SSL-terminating Application Gateway that points to a Kubernetes load balancer handles Ingress to the Domino application.
Domino recommends provisioning with Terraform for extended control and customizability of all resources. When you set up your Azure Terraform provider, add a partner_id with a value of 31912fbf-f6dd-5176-bffb-0a01e8ac71f2 to enable usage attribution.

Set up an AKS cluster for Domino

This section describes how to configure an AKS cluster for use with Domino.

Resource groups

You can provision the cluster, storage, and application gateway in an existing resource group. When Azure creates the cluster, it will create a separate resource group that will contain the cluster components themselves.

Namespaces

You do not have to configure namespaces prior to install. Domino will create three namespaces in the cluster during installation, according to the following specifications:

Namespace Contains

Namespace	Contains
`platform`	Durable Domino application, metadata, platform services required for platform operation.
`compute`	Ephemeral Domino execution pods launched by user actions in the application.
`domino-system`	Domino installation metadata and secrets.

platform

Durable Domino application, metadata, platform services required for platform operation.

compute

Ephemeral Domino execution pods launched by user actions in the application.

domino-system

Domino installation metadata and secrets.

Node pools

The AKS cluster must have at least two node pools: platform (for platform nodes) and default (for compute nodes). The cluster can also include a default-GPU node pool. All node pools must contain worker nodes with the following specifications and distinct node labels:

Pool Min-Max VM Disk Labels

Pool	Min-Max	VM	Disk	Labels
`platform`	4-6	Standard_DS5_v2	128G	`dominodatalab.com/node-pool: platform`
`default`	1-20	Standard_DS4_v2	128G	`dominodatalab.com/node-pool: default` `domino/build-node: true`
Optional: `default-gpu`	0-5	Standard_NC6_v3	128G	`dominodatalab.com/node-pool: default-gpu` `nvidia.com/gpu: true`

platform

4-6

Standard_DS5_v2

128G

dominodatalab.com/node-pool: platform

default

1-20

Standard_DS4_v2

128G

dominodatalab.com/node-pool: default domino/build-node: true

Optional: default-gpu

0-5

Standard_NC6_v3

128G

dominodatalab.com/node-pool: default-gpu nvidia.com/gpu: true

The recommended architecture creates the platform node pool by configuring the cluster’s initial default node pool. See the following cluster Terraform resource for a complete example.

resource "azurerm_kubernetes_cluster" "aks" {

  name                       = example_cluster
  enable_pod_security_policy = false
  location                   = "East US"
  resource_group_name        = "example_resource_group"
  dns_prefix                 = "example_cluster"
  private_cluster_enabled    = false

  default_node_pool {
    enable_node_public_ip = false
    name                  = "platform"
    node_count            = 4
    node_labels           = { "dominodatalab.com/node-pool" : "platform" }
    vm_size               = "Standard_DS5_v2"
    availability_zones    = ["1", "2", "3"]
    max_pods              = 250
    os_disk_size_gb       = 128
    node_taints           = []
    enable_auto_scaling   = true
    min_count             = 1
    max_count             = 4
  }

  network_profile {
    load_balancer_sku  = "Standard"
    network_plugin     = "azure"
    network_policy     = "calico"
    dns_service_ip     = "100.97.0.10"
    docker_bridge_cidr = "172.17.0.1/16"
    service_cidr       = "100.97.0.0/16"
  }

}

You must add the default compute node pool after the cluster is created. This is not the initial cluster default node pool, but a separate node pool named default. It contains the default Domino compute nodes. See the following node pool Terraform resource for a complete example.

resource "azurerm_kubernetes_cluster_node_pool" "aks" {

  enable_node_public_ip = false
  kubernetes_cluster_id = "example_cluster_id"
  name                  = "default"
  node_count            = 1
  vm_size               = "Standard_DS4_v2"
  availability_zones    = ["1", "2", "3"]
  max_pods              = 250
  os_disk_size_gb       = 128
  os_type               = "Linux"
  node_labels = {
    "domino/build-node"            = "true"
    "dominodatalab.com/build-node" = "true"
    "dominodatalab.com/node-pool"  = "default"
  }
  node_taints           = []
  enable_auto_scaling   = true
  min_count             = 1
  max_count             = 20

}

You can add node pools with distinct dominodatalab.com/node-pool labels to make other instance types available for Domino executions. See Manage Compute Resources to learn how these different node types are referenced by label from the Domino application. When you add GPU node pools, consider the Azure best practices on using GPU nodes in AKS.

Network plugin

The Domino-hosting cluster must use the Advanced Azure CNI with network policy enforcement by Calico. See the following network_profile configuration example.

network_profile {
  load_balancer_sku  = "Standard"
  network_plugin     = "azure"
  network_policy     = "calico"
  dns_service_ip     = "100.97.0.10"
  docker_bridge_cidr = "172.17.0.1/16"
  service_cidr       = "100.97.0.0/16"
}

Dynamic block storage

AKS clusters come equipped with several kubernetes.io/azure-disk backed storage classes by default. Domino requires use of premium disks for adequate input and output performance. You can use the managed-premium class that is created by default. Consult the following storage class specification as an example.

allowVolumeExpansion: true
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  labels:
    kubernetes.io/cluster-service: "true"
  name: managed-premium
  selfLink: /apis/storage.k8s.io/v1/storageclasses/managed-premium
parameters:
  cachingmode: ReadOnly
  kind: Managed
  storageaccounttype: Premium_LRS
reclaimPolicy: Delete
volumeBindingMode: Immediate

Persistent blob and data storage

Domino uses one Azure storage account for both blob data and files. See the following configuration for the two resources required, the storage account itself and a blob container inside the account.

resource "azurerm_storage_account" "domino" {
  name                     = "example_storage_account"
  resource_group_name      = "example_resource_group"
  location                 = "East US"
  account_kind             = "StorageV2"
  account_tier             = "Standard"
  account_replication_type = "LRS"
  access_tier              = "Hot"
}

resource "azurerm_storage_container" "domino_registry" {
  name                  = "docker"
  storage_account_name  = "example_storage_account"
  container_access_type = "private"
}

Record the names of these resources for use when you install Domino.

Domain

Domino must be configured to serve from a specific FQDN. To serve Domino securely over HTTPS, you need an SSL certificate that covers the chosen name. Record the FQDN for use when installing Domino.

Important

A Domino install can’t be hosted on a subdomain of another Domino install. For example, if you have Domino deployed at data-science.example.com, you can’t deploy another instance of Domino at acme.data-science.example.com.

Example installer configuration

See the following example configuration file for the Installation Process based on the previous provisioning examples.

schema: '1.0'
name: domino-deployment
version: 4.1.9
hostname: domino.example.org
pod_cidr: '100.97.0.0/16'
ssl_enabled: true
ssl_redirect: true
request_resources: true
enable_network_policies: true
enable_pod_security_policies: true
create_restricted_pod_security_policy: true
namespaces:
  platform:
    name: domino-platform
    annotations: {}
    labels:
      domino-platform: 'true'
  compute:
    name: domino-compute
    annotations: {}
    labels: {}
  system:
    name: domino-system
    annotations: {}
    labels: {}
ingress_controller:
  create: true
  gke_cluster_uuid: ''
storage_classes:
  block:
    create: false
    name: managed-premium
    type: azure-disk
    access_modes:
    - ReadWriteOnce
    base_path: ''
    default: false
  shared:
    create: true
    name: dominoshared
    type: azure-file
    access_modes:
    - ReadWriteMany
    efs:
      region: ''
      filesystem_id: ''
    nfs:
      server: ''
      mount_path: ''
      mount_options: []
    azure_file:
      storage_account: ''
blob_storage:
  projects:
    type: shared
    s3:
      region: ''
      bucket: ''
      sse_kms_key_id: ''
    azure:
      account_name: ''
      account_key: ''
      container: ''
    gcs:
      bucket: ''
      service_account_name: ''
      project_name: ''
  logs:
    type: shared
    s3:
      region: ''
      bucket: ''
      sse_kms_key_id: ''
    azure:
      account_name: ''
      account_key: ''
      container: ''
    gcs:
      bucket: ''
      service_account_name: ''
      project_name: ''
  backups:
    type: shared
    s3:
      region: ''
      bucket: ''
      sse_kms_key_id: ''
    azure:
      account_name: ''
      account_key: ''
      container: ''
    gcs:
      bucket: ''
      service_account_name: ''
      project_name: ''
  default:
    type: shared
    s3:
      region: ''
      bucket: ''
      sse_kms_key_id: ''
    azure:
      account_name: ''
      account_key: ''
      container: ''
    gcs:
      bucket: ''
      service_account_name: ''
      project_name: ''
    enabled: true
autoscaler:
  enabled: false
  cloud_provider: azure
  groups:
  - name: ''
    min_size: 0
    max_size: 0
  aws:
    region: ''
  azure:
    resource_group: ''
    subscription_id: ''
spotinst_controller:
  enabled: false
  token: ''
  account: ''
external_dns:
  enabled: false
  provider: aws
  domain_filters: []
  zone_id_filters: []
git:
  storage_class: managed-premium
email_notifications:
  enabled: false
  server: smtp.customer.org
  port: 465
  encryption: ssl
  from_address: domino@customer.org
  authentication:
    username: ''
    password: ''
monitoring:
  prometheus_metrics: true
  newrelic:
    apm: false
    infrastructure: false
    license_key: ''
helm:
  tiller_image: gcr.io/kubernetes-helm/tiller
  appr_registry: quay.io
  appr_insecure: false
  appr_username: '$QUAY_USERNAME'
  appr_password: '$QUAY_PASSWORD'
private_docker_registry:
  server: quay.io
  username: '$QUAY_USERNAME'
  password: '$QUAY_PASSWORD'
internal_docker_registry:
  s3_override:
    region: ''
    bucket: ''
    sse_kms_key_id: ''
  gcs_override:
    bucket: ''
    service_account_name: ''
    project_name: ''
  azure_blobs_override:
    account_name: 'example_storage_account'
    account_key: 'example_storage_account_key'
    container: 'docker'
telemetry:
  intercom:
    enabled: false
  mixpanel:
    enabled: false
    token: ''
gpu:
  enabled: false
fleetcommand:
  enabled: false
  api_token: ''
teleport_kube_agent:
  enabled: false
  proxyAddr: teleport-domino.example.org:443
  authToken: TOKEN
